Dimensions: 160х100х45 mm Weight: 0,35 kg (including cable)
ANESA-L/2007 – requires software USPIH, version 10
ANESA-L/2007w - requires software USPIH, version 9

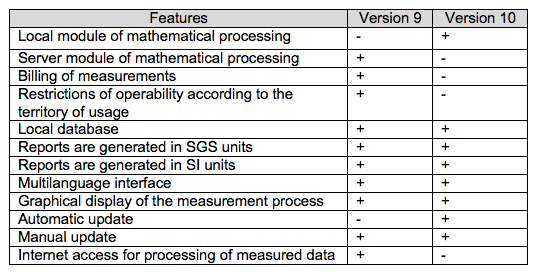

The main differences between the software USPIH 9 and USPIH 10
General technical data for all models of ANESA are the following:
|
PC mains voltage |
230 V ± 10 %; 50/60 Hz |
|
Analyzer’s mains voltage (from USB port) |
U = 5 ± 1 V DC I = 195 mA |
|
Consumption |
max. 0,975 VA |
|
MD Class |
II |
|
Protection of patient |
A |
|
EMC |
in accordance with EN 60601-1-2:2007/AC:2010 |
|
IP Class of Analyzer |
IP 20 |
|
Readiness time counted from |
max. 3 min |
|
Range of temperature of reference points |
24 – 42 °C |
|
Margin of error of reference points |
max. ± 0,75 °C |
|
Length of cables for sensors |
min. 1,5 m |
|
Accuracy of the sensors |
±0,5 °C, from -10 °C to +85 °C |
|
Resolution of the sensors |
0.0625°C Resolution is user-configurable to 12 bits |
|
Time of examination |
max.730 sec |
|
Method of diagnostic: |
Malykhin-Pulavskyi (data collection from reference point) |
|
Software |
USPIH (based on methodology of Malykhin-Pulavskyi) |
Minimum hardware requirements:
|
Processor |
Pentium 4, and higher |
|
RAM |
min. 512 Mb |
|
HDD |
40 GB |
|
Display |
min. SVGA 14”…17” definition 1024x768 pixels |
|
USB port |
min. 3 |
Minimum software requirements:
|
Operating system |
Windows XP, 2003, 2008, Vista, 7 During installation of software USPIH, a user must have administrator rights of access. |
|
Antivirus software |
Any antivirus software must be set up in such a way, when the software USPIH isn’t blocked. |
